Wiring

Boiler Cascade Submodule
with 3 x Triac Outputs

or 2 x 0-10v outputs

Latest released version is 4d1


New features in the this issue are in RED text


CAS / DIN / 3T/ ...

CAS / DIN / AOP/ ...

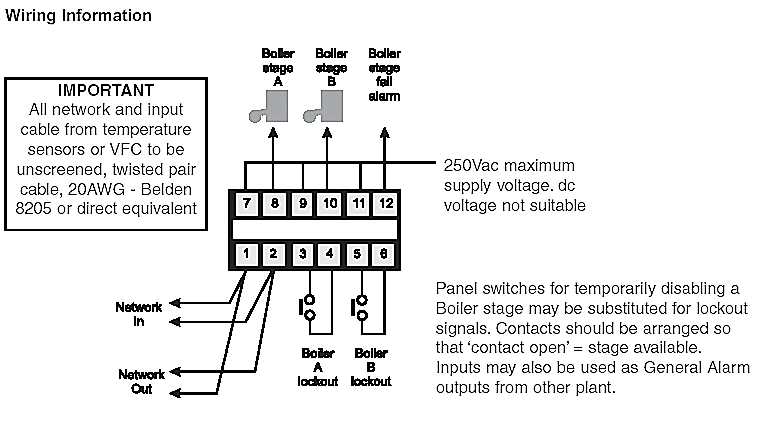

Wiring Diagram 3T (3 Triac)

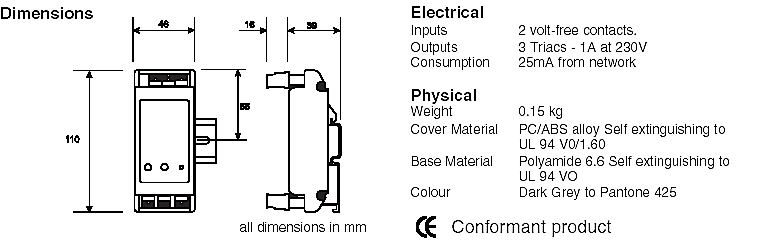

Specifications

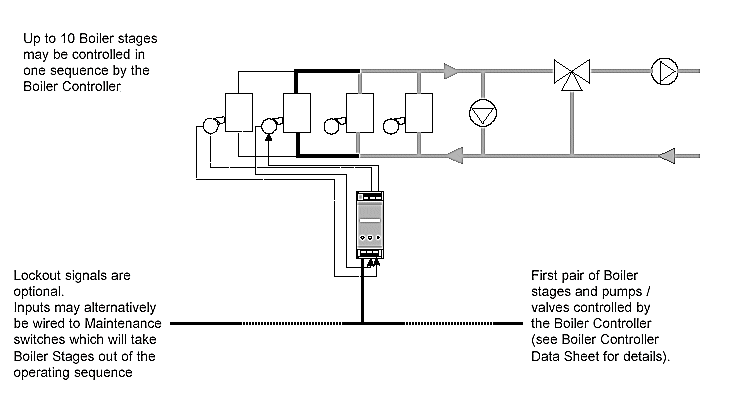

Typical Examples

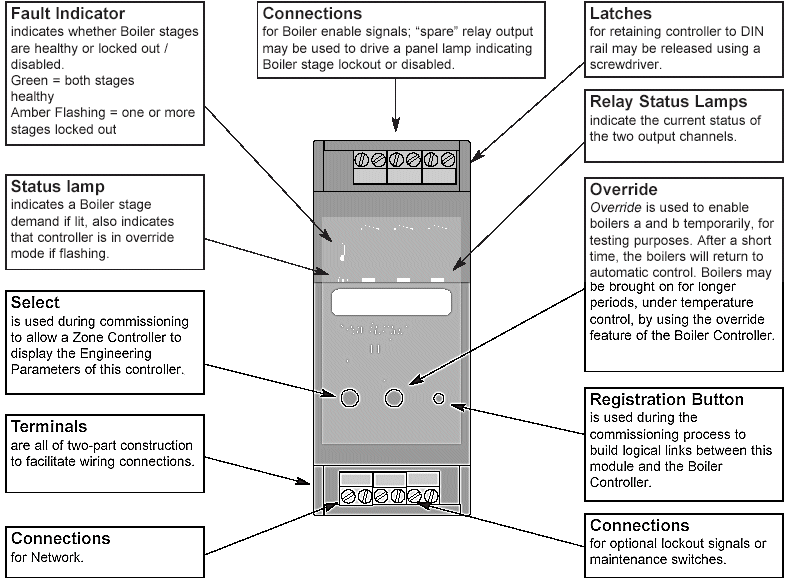

Typical Features
