Wiring

Serial Adaptor
Integrated version with modem or GSM modem(SLTi)


SLTi / DIN / .../ ...

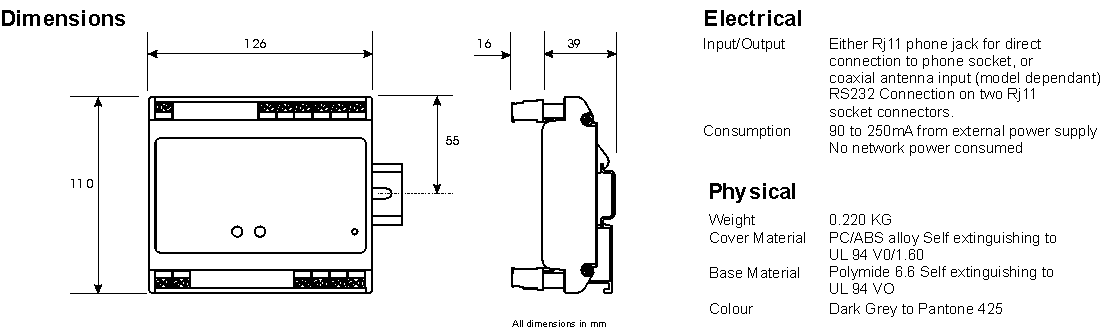

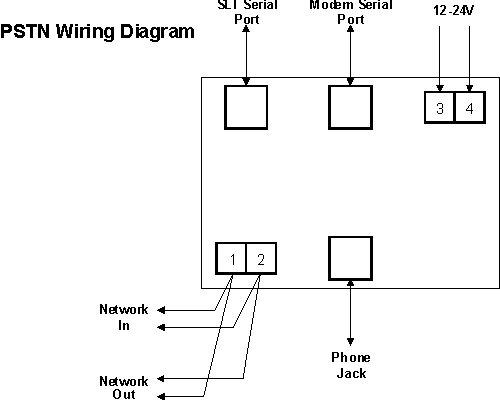

The SLT Serial Port, Modem Serial Port, and the Phone Jack connections are all RJ11 type connectors. The pinouts are as follows:
Pin
SLT Serial Port
Modem Serial Port
Phone Jack
1
NC
NC
NC
2
GND
GND
NC
3
RXD (RS232 input)
RXD (RS232 input)
Tip
4
TXD (RS232 output)
TXD (RS232 output)
Ring
5
NC
NC
NC
6
GND
GND
NC

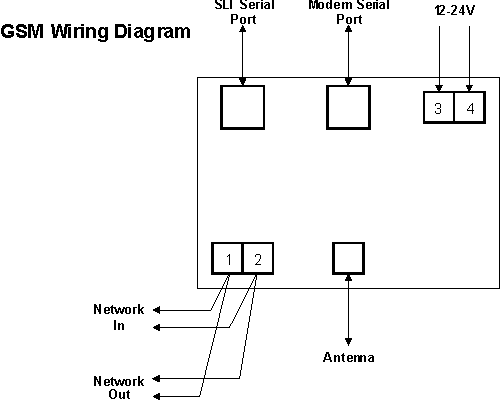

The Antenna connection for the GSM version is a SMA female connector. Note, the module is supplied with a FME adaptor for the antenna, 5m of antenna cable, and a magnetic antenna are also supplied.
