Wiring Data

Actuator Submodule
with 3 x Triac Outputs (3T version)
with 2 x 0-10V Outputs (AOP version)

ACT / DIN / 3T / ...

ACT / DIN / AOP / ...

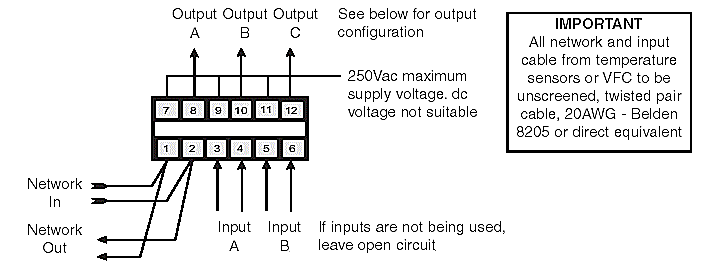

Wiring Diagram 3T Version

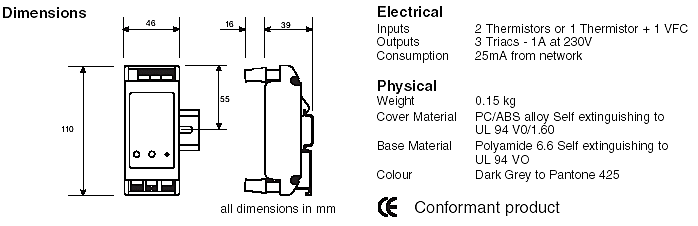

Specifications 3T Version

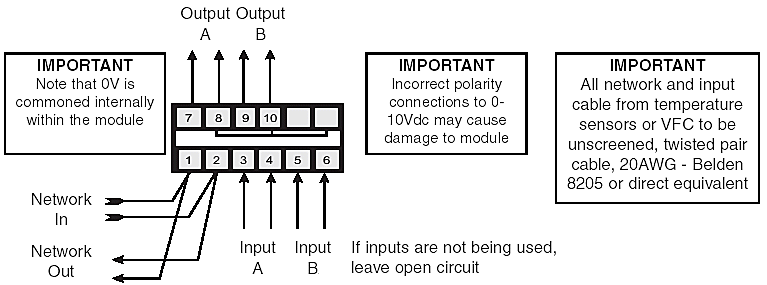

Wiring Diagram AOP Version

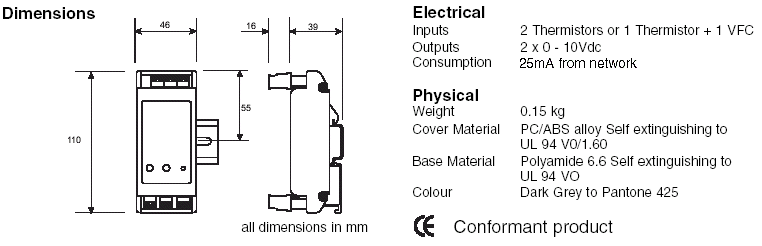

Specification AOP Version

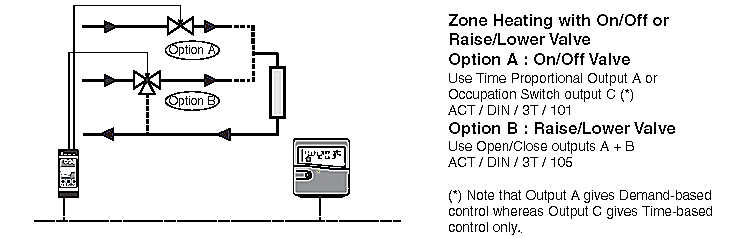

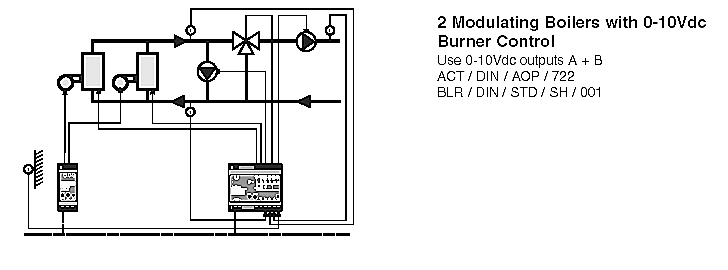

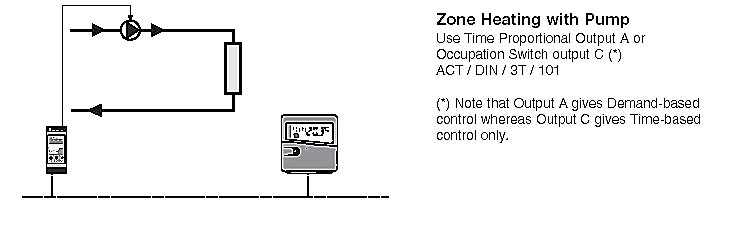

Typical Examples

---

Typical Features
